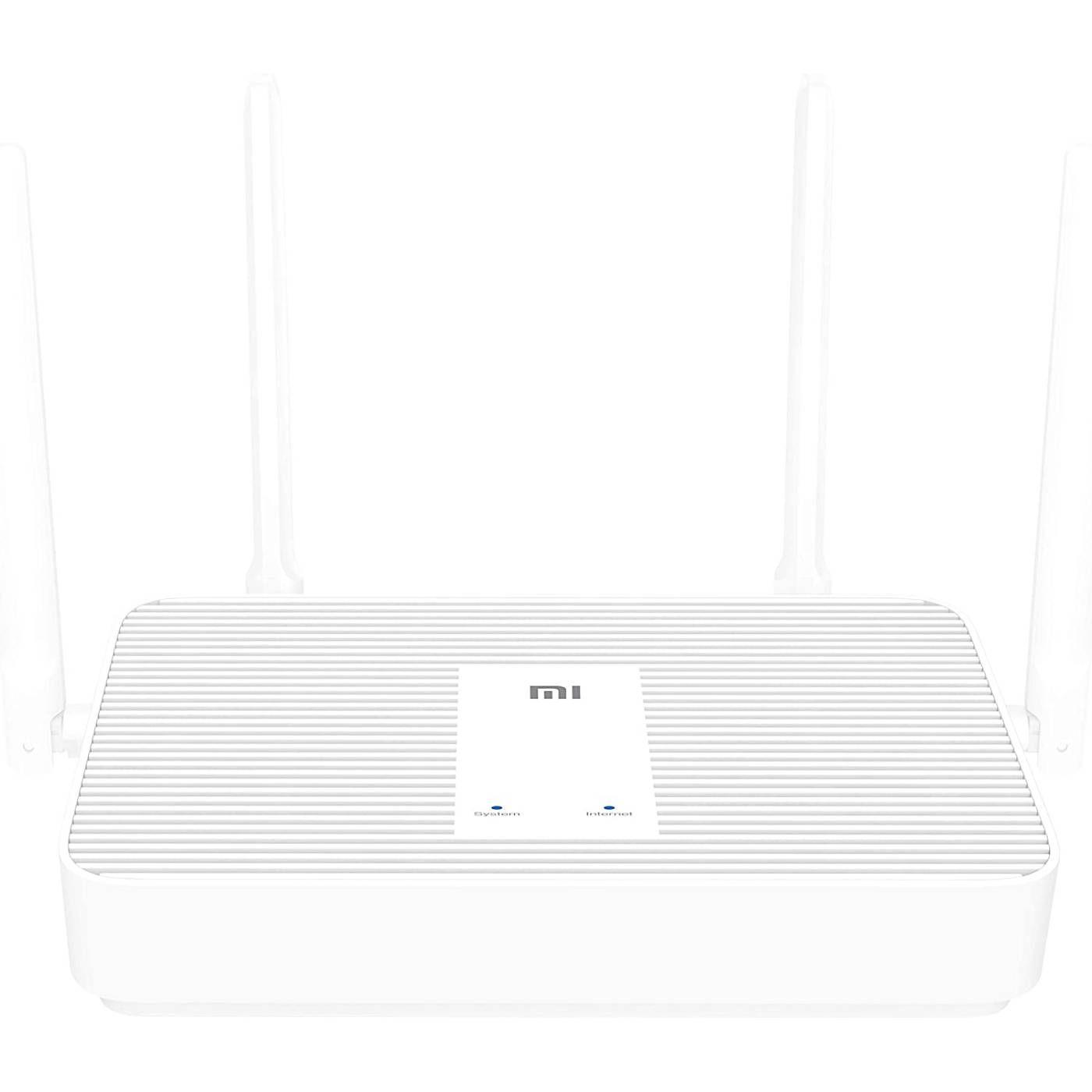

Xiaomi Mi Router Ax1800 – White
About this item
- 4-way independent signal amplifier
- Large 256 MB memory
- Mesh networking
- Fast Wi-Fi6
- Optimized for Mi Smart Home
- Qualcomm 5-core chipset
- Dual Band 2.4 Ghz / 5 Ghz
- Processor manufactured using 14 nm process technology
- Large 256 MB memory Stably connects to 128 devices
Xiaomi Mi Router Ax1800 – White
From the manufacturer
Xiaomi Mi Router Ax1800 – White, The router’s minimalistic design highlighted by the white colour scheme makes it a good fit for any household Supports the following standards: 802,11a (5GHz), 802,11b (2,4GHz), 802,11g (2,4GHz), 802,11n, 802,11ac and 802,11ax Bandwidth speed up to 1775 Mb/s Easy network security Easy router setup Parental controls allow you to keep an eye on what your children are doing online Number of external antennas: 4

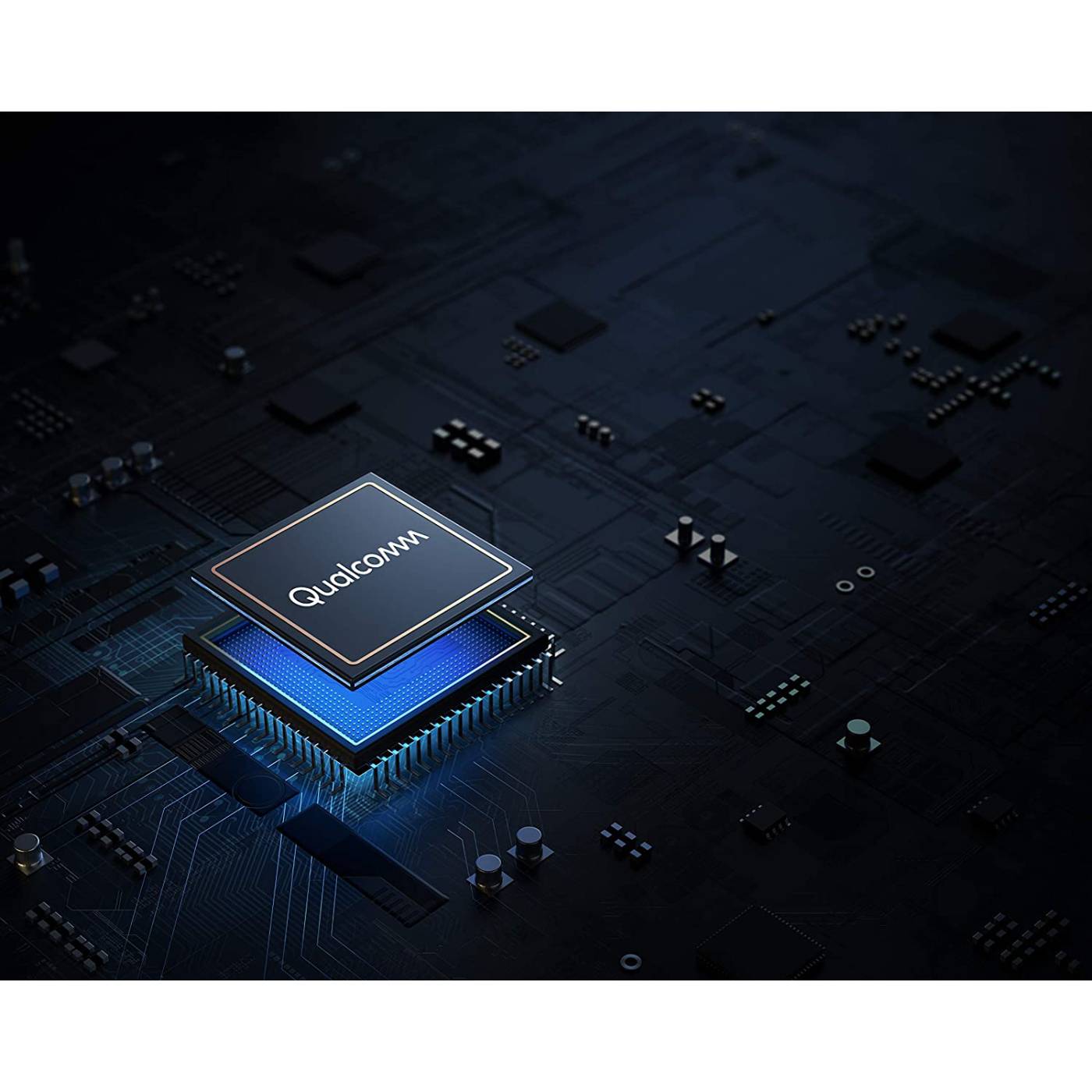

Qualcomm 5-core chipset with powerful enterprise-class performance
Powerful quad-core CPU, single-core NPU hardware acceleration
Qualcomm 5-core chipset Home router with powerful enterprise-class performance Always stable for ease of mind online

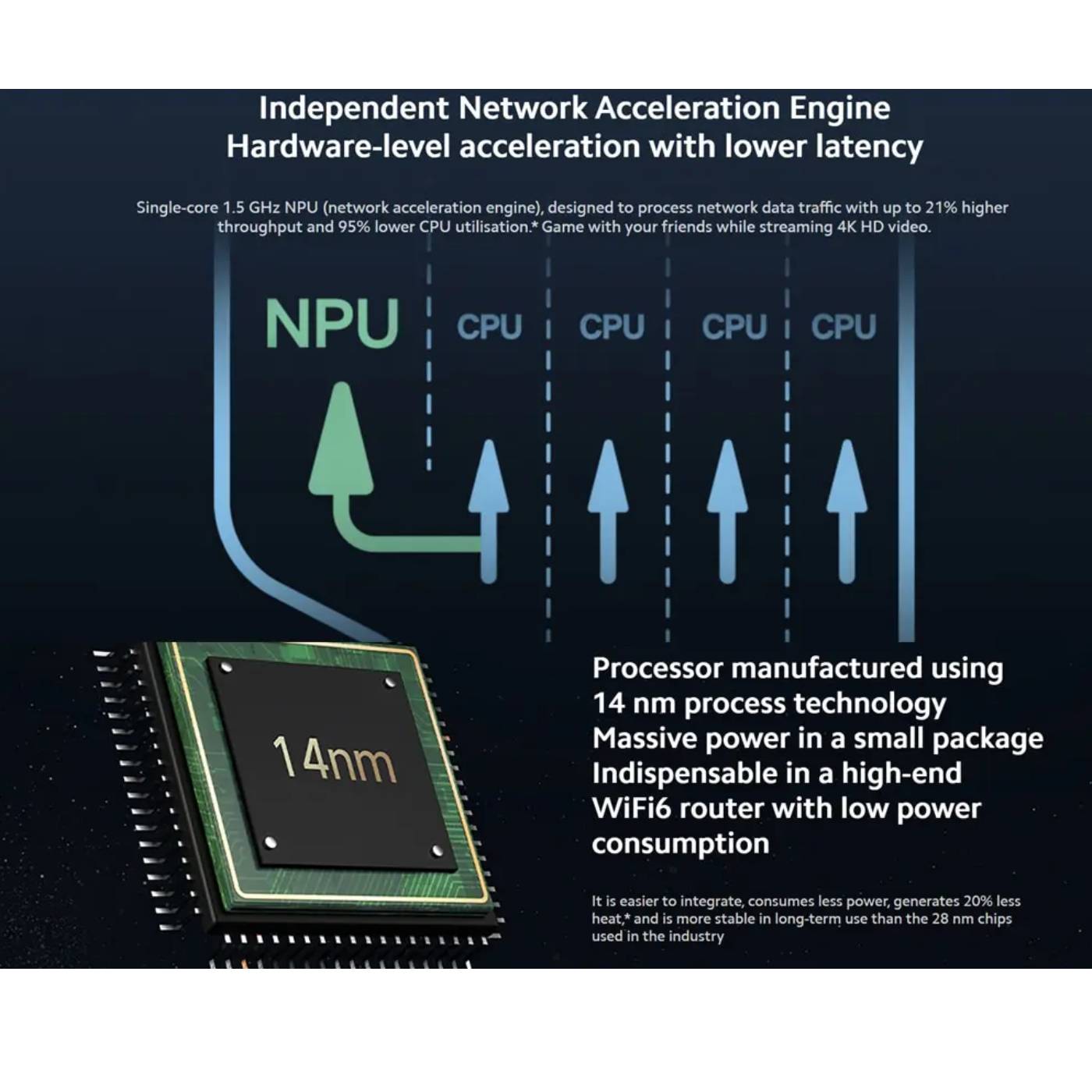

Single-core 1.5 GHz NPU (network acceleration engine), designed to process network data traffic with up to 21% higher throughput and 95% lower CPU utilisation. Game with your friends while streaming 4K HD video.

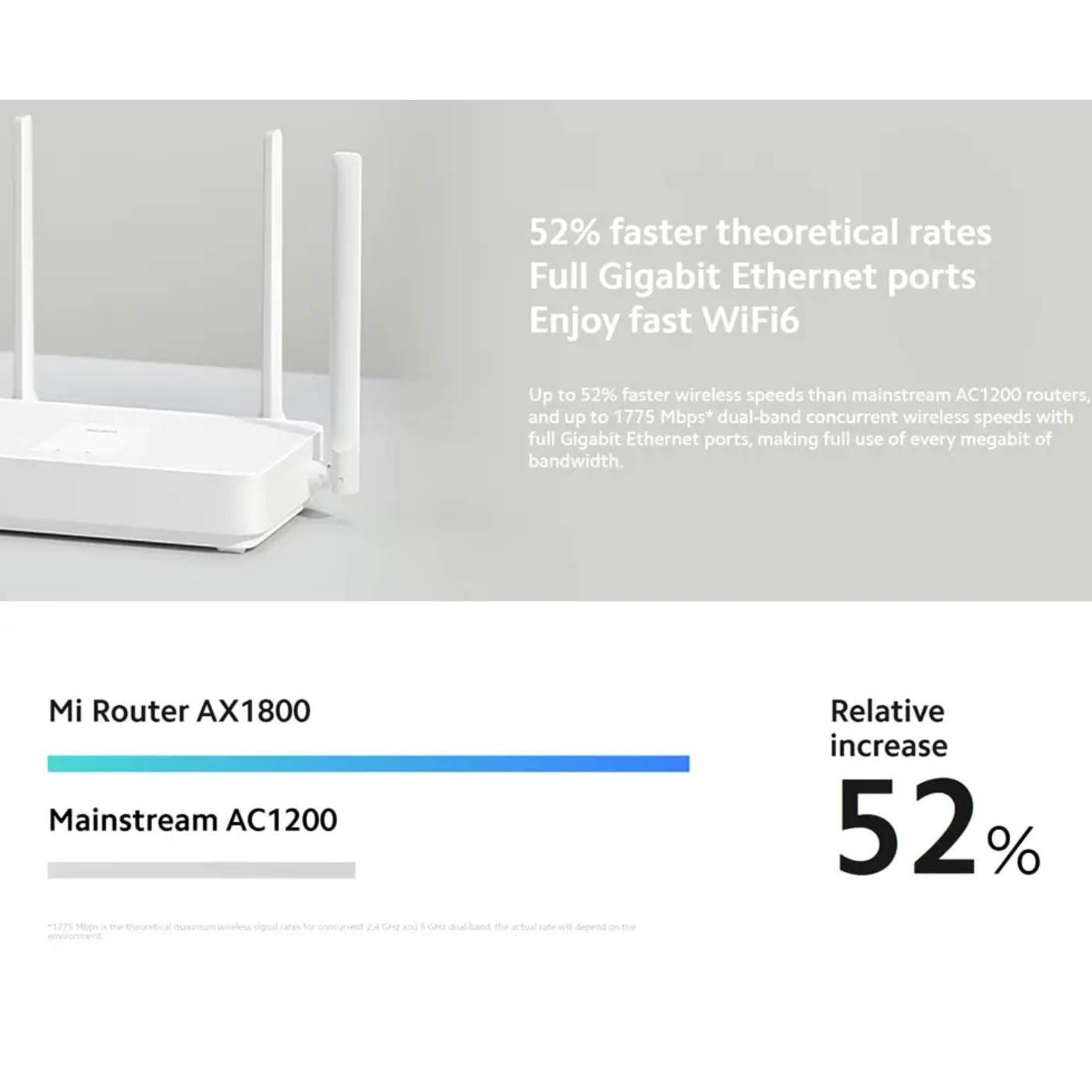

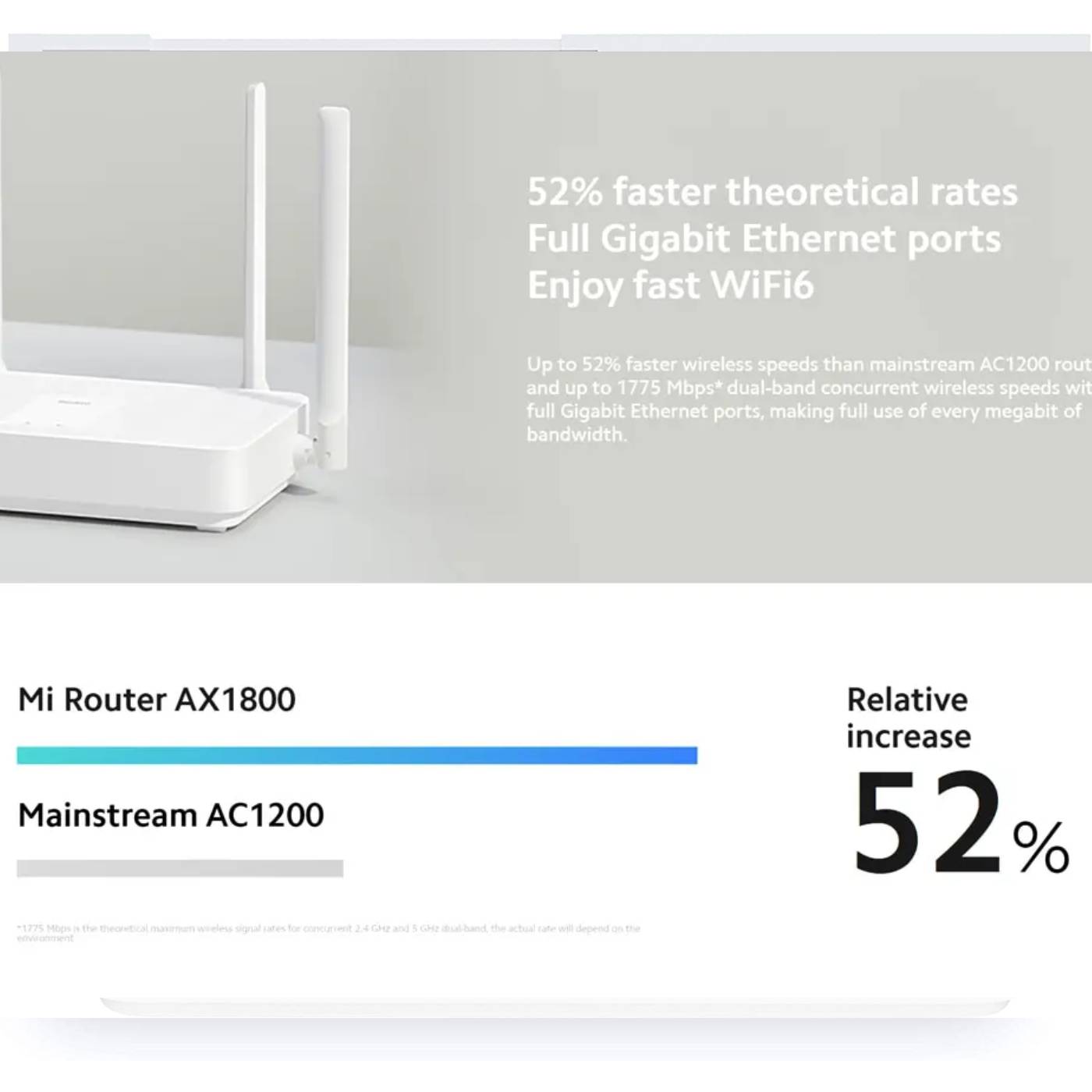

Up to 52% faster wireless speeds than mainstream AC1200 routers, and up to 1775 Mbps* dual-band concurrent wireless speeds with full Gigabit Ethernet ports, making full use of every megabit of bandwidth.
Technical Details
- External dimensions: 24.7X14.1ร18 cm
- Processor: IPQ6000 quad-core A53 1.2 GHz CPU
- Network Acceleration Engine: Single-core 1.5 GHz NPU
- Memory: 256 MB
- 2.4G Wi-Fi: 2ร2 (supports up to IEEE 802.11ax protocol with a theoretical maximum speed of 574 Mbps)
- 5G Wi-Fi: 2ร2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed up to 1201 Mbps)

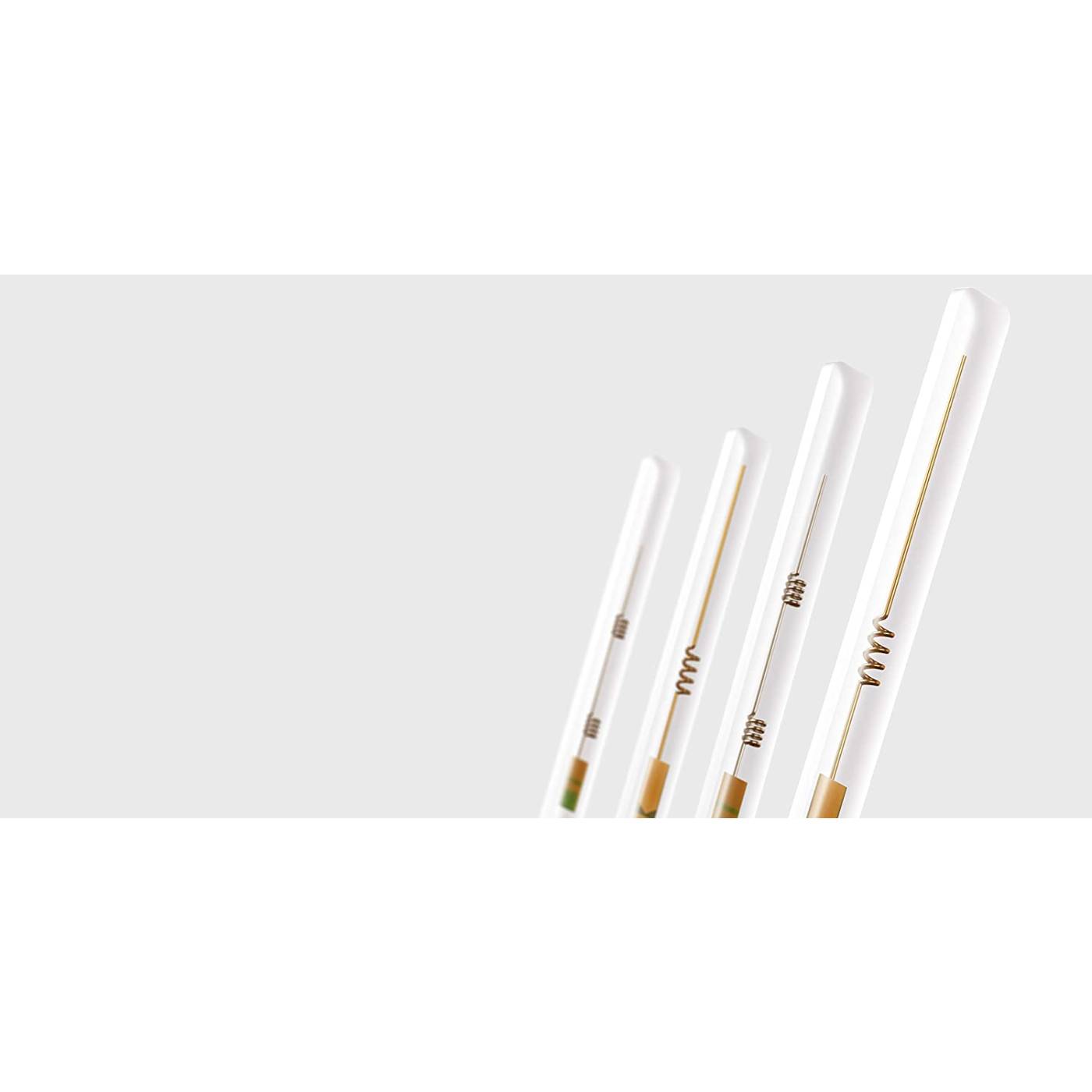

- Antennas: 4x external antennas

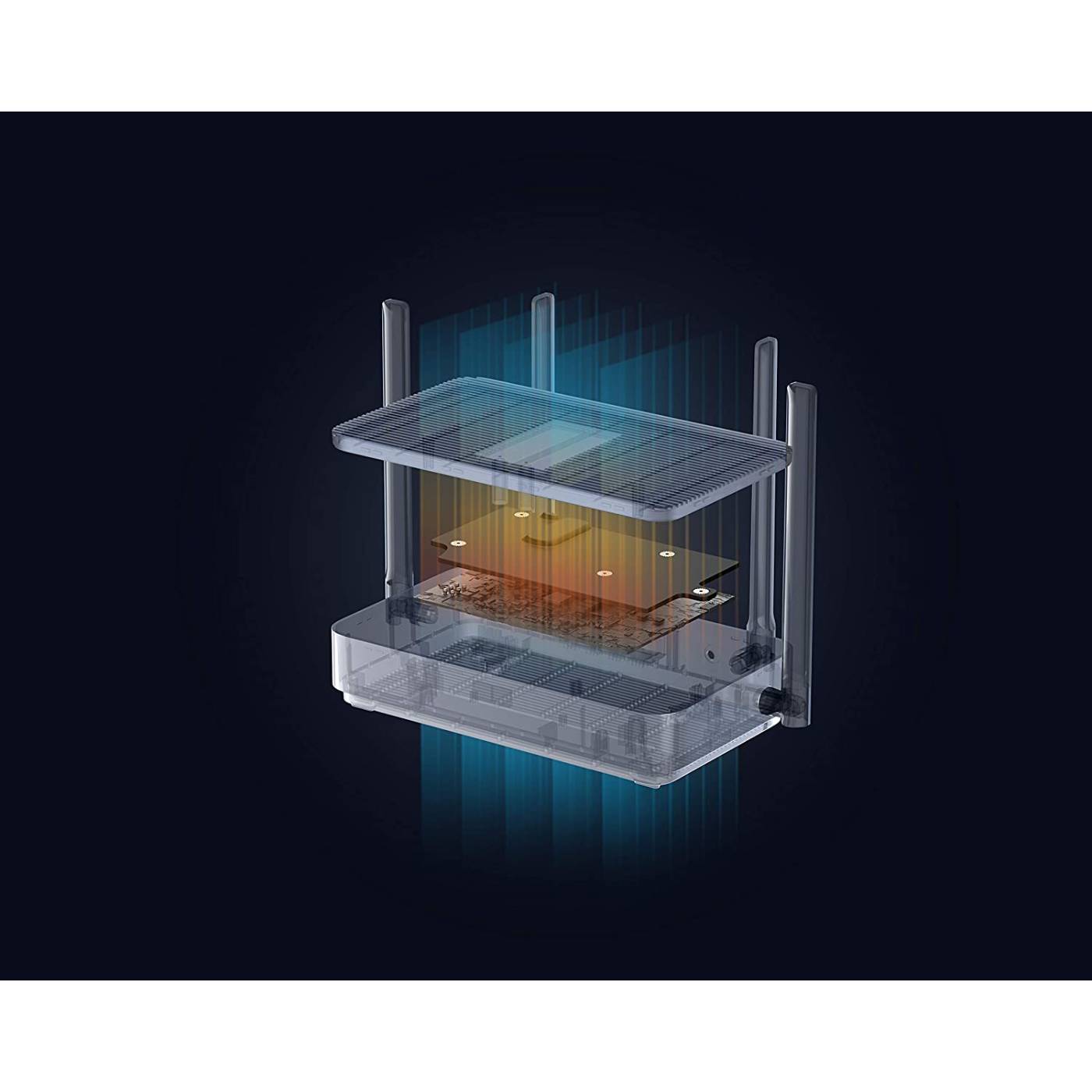

- Cooling: Passive cooling

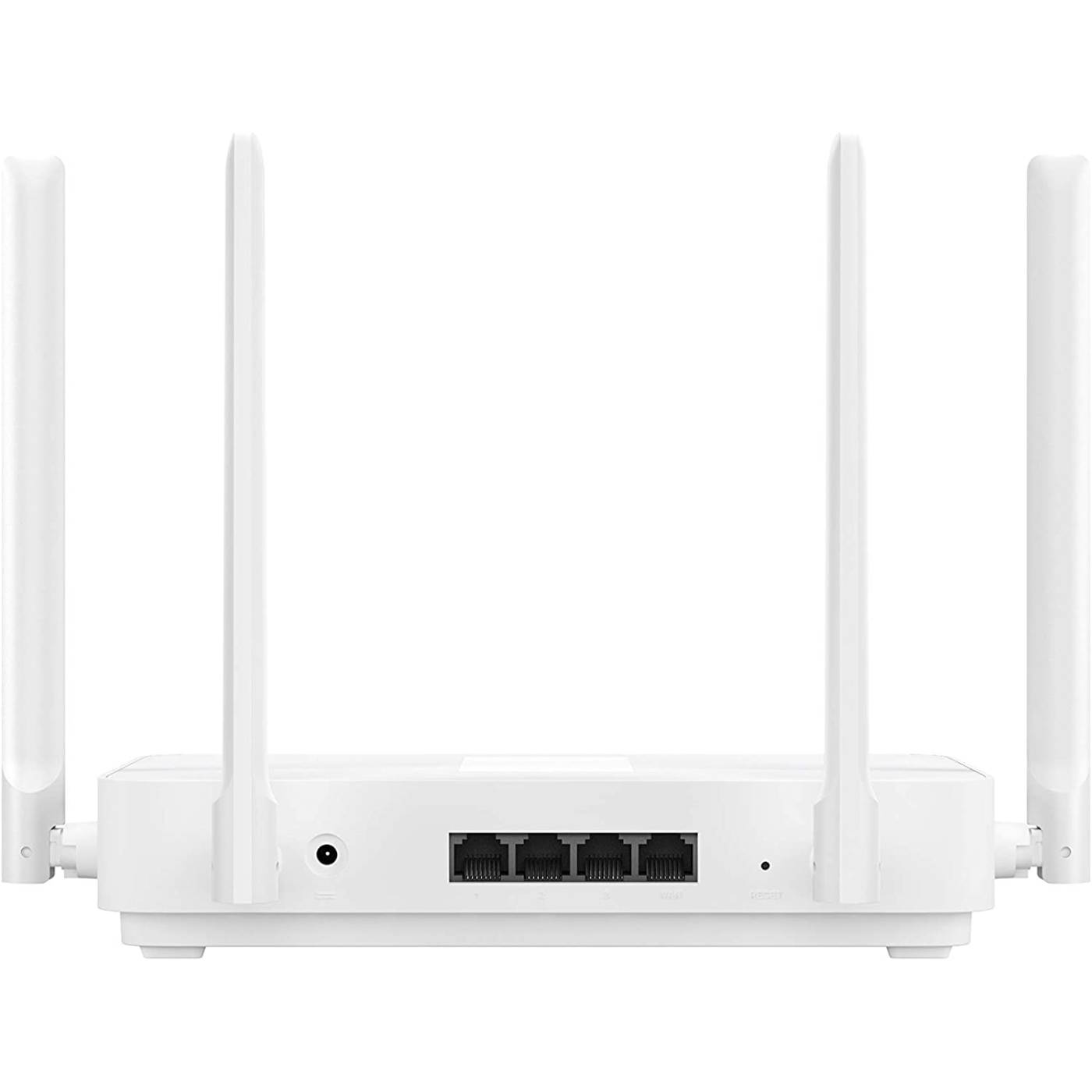

- Product ports: 1x 10/100/1000M adaptive WAN port (Auto MDI/MDIX), 3x 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
- LED indicator: 2x (System indicator x1, Internet indicator x1)
- System reset button: 1x
- Power supply port: 1x
- Protocol standards: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
- Certification standards: GB/T9254-2008; GB4943.1-2011
Wireless specifications
- Dual-band: 2.5 GHz and 5 GHz
- Modulation: 11B:DSSS:DBPSK(1 Mbps), DQPSK(2 Mbps), CCK(5,5/11 Mbps), 11A/g:OFDM:BPSK(6/9 Mbps), QPSK(12/18 Mbps), 16QAM(24/36 Mbps), 64QAM(48/54 Mbps), 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.Rate set: MCS0-MCS15, 11AC:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM., Rate set: MSC0-MCS9 (supports 2 streams), 11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM., Rate set: MCS0-MCS11 (2 streams supported)
Software parameters
- Operating system: OpenWRT widely customizable intelligent router operating system MiWiFi ROM
- WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
- Network Security: Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC Address binding, IP and MAC filtering
- Manage applications: Supports Web, Android, iOS
Accessories
- Power supply: 1x (12 V/1 A)
- Operating environment temperature:ย 0ยฐCโ40ยฐC
- Operating humidity: 10%โ90% RH (non-condensing)
- Storage temperature: -40ยฐCโ70ยฐC
- Storage humidity: 5%โ90% RH (non-condensing
Weight | 520 g |
---|---|
Color | White |
