Xiaomi Mesh System AX3000 Wi-Fi 6 Router (1-Pack)

From the manufacturer

Xiaomi Mesh System AX3000 Wi-Fi 6 Router (1-Pack)

Xiaomi’s mesh system provides full coverage for complex home arrangements

Xiaomi Mesh System AX3000 (1-Pack) combines into a mesh network that provides Wi-Fi 6 coverage throughout the home, covering up to 4,000 square feet of space. The signal roams between different routers automatically and seamlessly, allowing you to play as you go.

Mesh system with self-repairing* capabilities

In a mesh network created using Xiaomi Mesh System AX3000, when a failed node is detected, the entire network architecture is re-planned to ensure normal mesh network operation.

160MHz high-bandwidth for a superb experience

If bandwidth is like a highway, conventional 2-lane traffic systems are always congested. With the Xiaomi Mesh System AX3000 (1-Pack), however, the width of every lane, and speeds in the 5GHz band are doubled *. Enjoy an ultimate smooth online experience, even when connecting with multiple devices.

High-efficiency OFDMA transmission makes Internet access smoother for multiple devices*

OFDMA technology allows routers to process data flows from multiple devices simultaneously when large devices require data transmission, effectively reducing network congestion and greatly reducing latency.

Not just energy efficient, but more durable

Target Wake Time technology only connects when a transmit signal is received, otherwise remaining in sleep mode. This effectively reduces average power consumption when connecting to Wi-Fi devices, and extends the product life span.

Cool black rectangle cube-shaped design

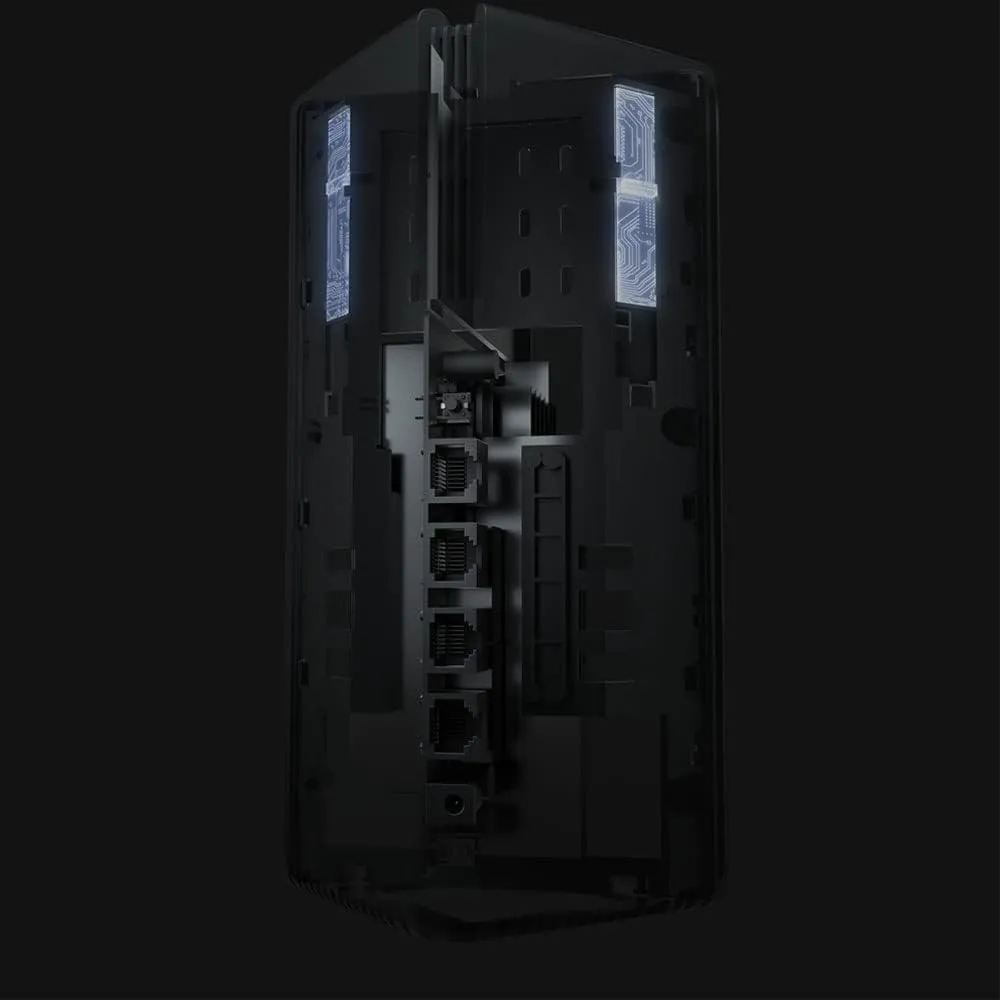

Concealed dual-band high-performance antennas, tower-type thermal architecture, large channel convection and extra-large metal heat sink ensure stable operability.

Greater specialist technology support



Technical Details

L×W×H (per unit)	97mm × 97mm × 222mm
Product color	Black
Processor	Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU
Network processing unit	Single core 1.0GHz NPU
Memory	256MB
2.4G Wi-Fi	2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
5GHz Wi-Fi	2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
Antennas	High gain antennas
Heat dissipation	Natural heat dissipation
Total ports	1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)	3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)
LED indicator light	2 lights, System indicator × 1, Internet indicator × 1
System reset button	×1
Mesh networking button	×1
Power input port	×1
Protocol standards	IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Dual-band	2.4GHz, 5GHz
Modulation	11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)	11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),	64QAM(48/54Mbps)
	11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rate：MCS0-MCS15
Operating system	Mi WiFi ROM, a smart router operating system based on OpenWRT
WiFi Encryption	WPA-PSK/WPA2-PSK/WPA3-SAE encryption,	Wireless access control (black and white list), SSID hidden
Management applications	Supports Web, Android, iOS
Working environment Temperature	0-40℃
Operating humidity	10%-90%RH (non-condensing)
Storage temperature	-40-70℃
Storage humidity	5%-90%RH (non-condensing)
Package contents	Xiaomi Mesh System AX3000 x 1	Instruction Manual	Power cord
